Ur System

Viscosity Bath

Category: Fuels and Oil Analysis
Part No.: UR-8VB

Product Description

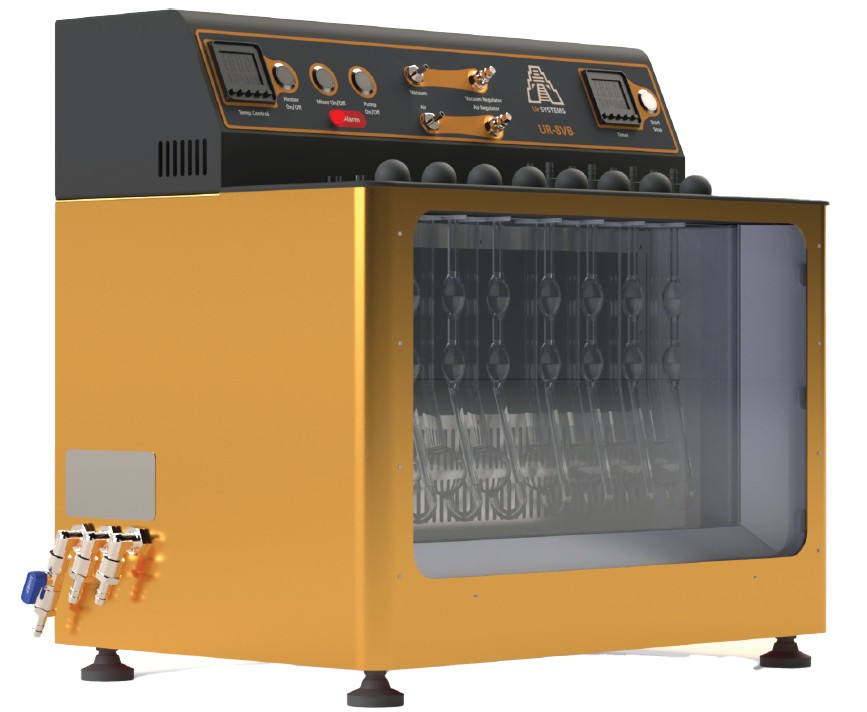

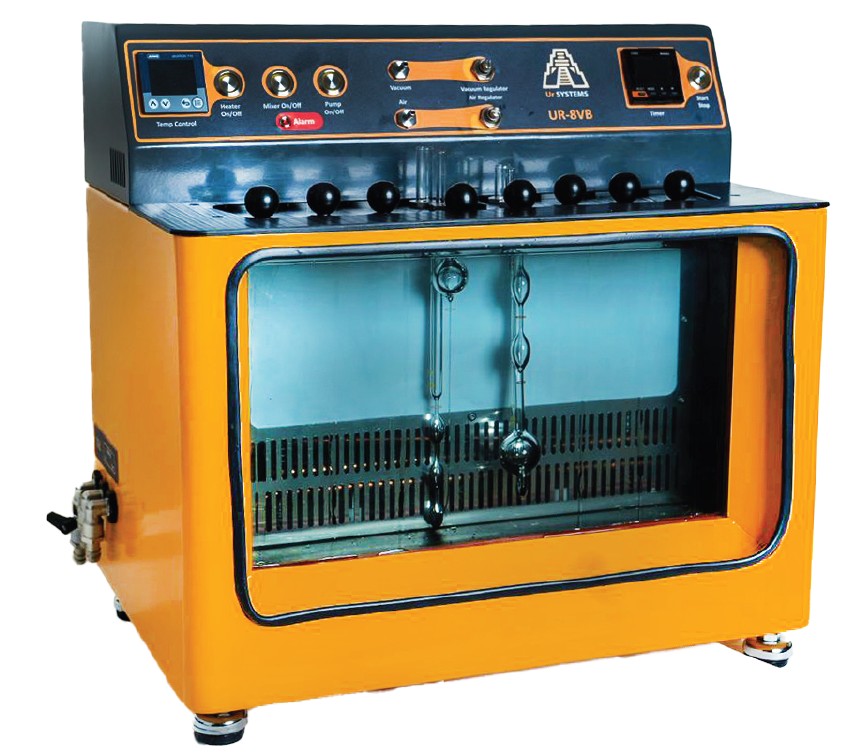

The UR-8VB Manual Viscosity Bath is a precision-engineered instrument for accurate determination of kinematic viscosity in accordance with ASTM D445, D446, D2170, D2171, and EN 12595 standards. Designed for reliability, visibility, and durability, the bath features a transparent glass chamber with a protective front window, allowing clear observation and safe operation. Capable of accommodating up to 8 viscometers simultaneously, the UR-8VB provides consistent and precise temperature control for light and heavy fuels, lubricating oils, and asphalts.

Applications:
Ideal for kinematic viscosity testing of:
– Light and heavy fuels
– Lubricating and base oils
– Bitumen and asphalts
– Petrochemical and industrial samples
– Perfect for research laboratories, quality control, and standard-compliant testing environments.

Specifications

Bath Type
Transparent glass bath with protective front window
Bath Capacity
18 L
Temperature Stability
Ambient +5 °C to 140 °C
Temperature Stability
± 0.05 °C
Dimensions (W×D×H)
503 × 341.5 × 490 mm
Sample Capacity
Up to 8 viscometers
Bath Openings
Ø 51 mm × 8
Cooling
External chiller connection
Circulation
Internal stirrer for uniform temperature
